Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings

I'm Online Chat Now

Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings

Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings
Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings

Large Image :  Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings

Product Details:
Place of Origin: FOSHAN
Brand Name: MINGXINLONG
Certification: ISO9001
Model Number: MX20221017001
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 1 per pcs
Packaging Details: Bubble Cotton+ Polywood Case
Delivery Time: 15 to 26 days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100 pairs per month

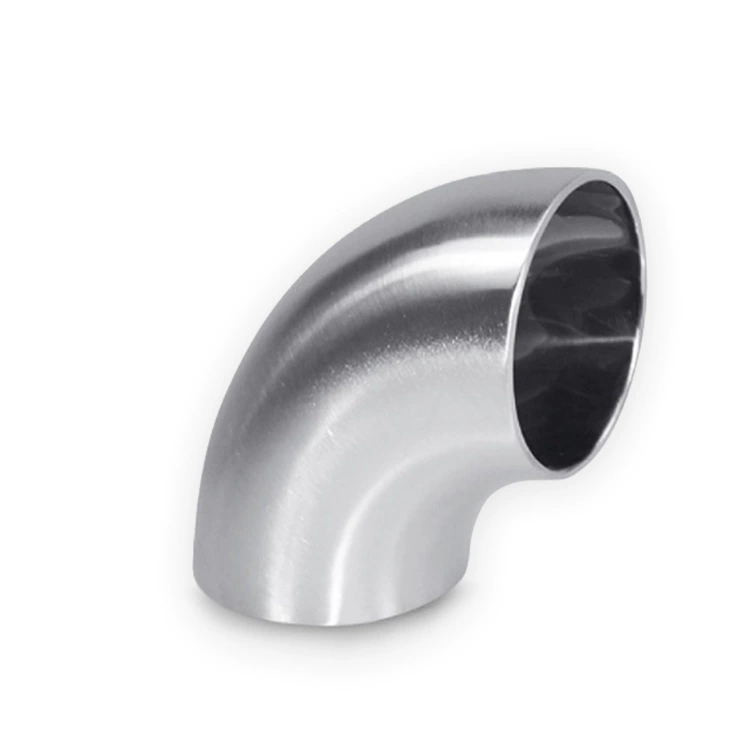

Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings

Description
Material: 304 316L Stainless Steel Technique: Welding , Sanding,Polishing
Thk. Of Wall: 1.0 To 2 Mm Diameter: 14,19,25,28,32,34,42,45,48,50,57,63,70,76,89,102,108,114,133,159,168mm Mm Or Custom
MOQ: 20 Days Packing: Polywood Case
High Light:

Grade 316 Stainless Steel Accessories

,

Elbow Pipe Stainless Steel Accessories

,

304 Elbow Pipe Fittings

Grade 304 316 Stainless Steel Pipe Elbow Pipe Fitting



ITEM NO. DN
(mm)
OD
mm)
A
(mm)
C
(mm)
FS-MX8001 10 12.7 110 21
FS-MX8002 15 16 130 26
FS-MX8003 20 20 145 30
FS-MX8004 25 25.4 152 34
FS-MX8005 35 32 128 50
FS-MX8006 40 40 144 58
FS-MX8007 50 50.8 158 64
FS-MX8008 65 76.1 180 82
FS-MX8009 80 88.9 210 90
FS-MX8010 100 101.6 245 95



Introduction of Stainless Steel Pipe Elbow Pipe Fitting


In the pipeline system, stainless steel elbow is to change the direction of the line pipe fittings. Points according to the Angle 45 ° and 90 °, 180 ° that three most commonly used, according to the requirements of the project also includes 60 °, and other abnormal Angle bend.

Elbow materials, stainless steel, alloy steel, cast iron can be calcined cast iron, carbon steel, nonferrous metal and plastic, etc. With the pipe connection ways: direct welding (way) of the most commonly used flange connection, hot melt connection, fused connection, threaded connection and socket type connector, etc. According to the production process can be divided into: welding bend, stamping elbow, pushing system bend, casting bend, etc. Other names: 90 degrees bend, right-angle bend, such as love and curved.

Stainless steel elbow from carbon steel elbow is the main material is different, its chemical composition can keep the elbow surface for a long time will not rust, does not corrode. According to the standard production can be turned into: stainless steel elbow





Application


Stainless steel pipe fittings are used most often in pressure vessels and chemical industries. The general oil refinery equipment factory has a large demand. Other aspects, such as chemical, food, beverage, pharmaceutical and other industries can be applied. It is widely used in industrial transportation pipelines and mechanical structural parts such as petroleum, chemical industry, medical treatment, food, light industry, and mechanical instrumentation.

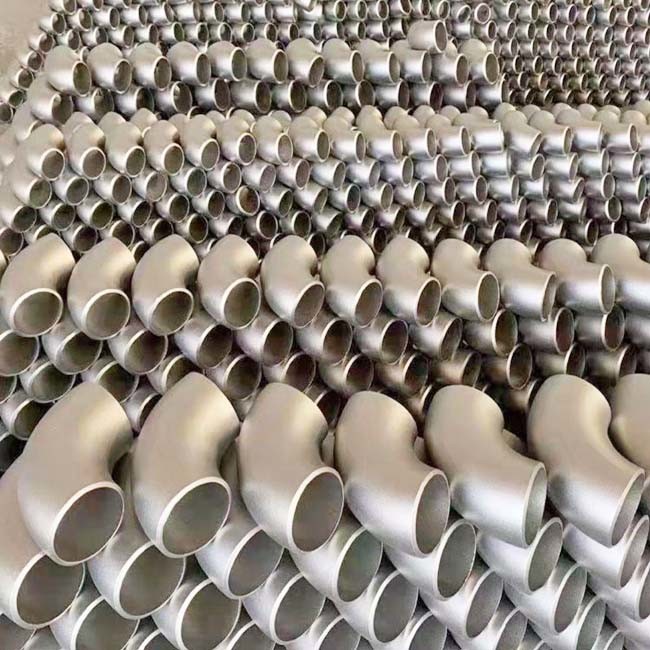

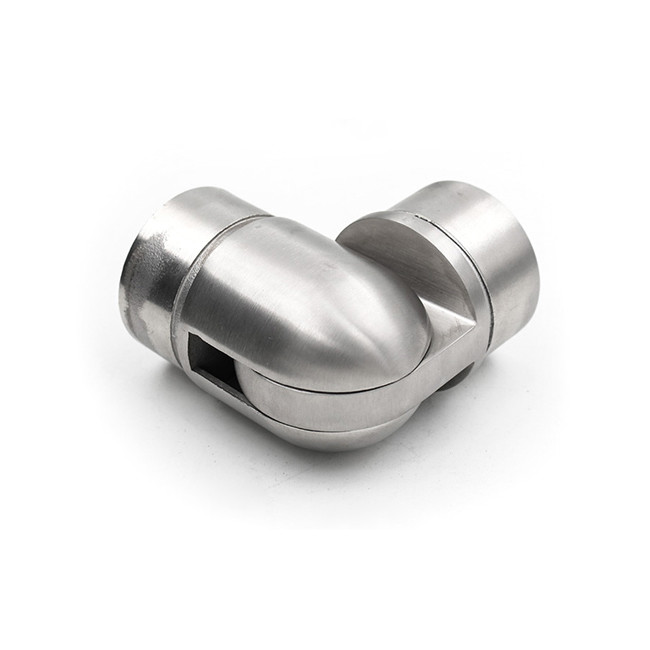

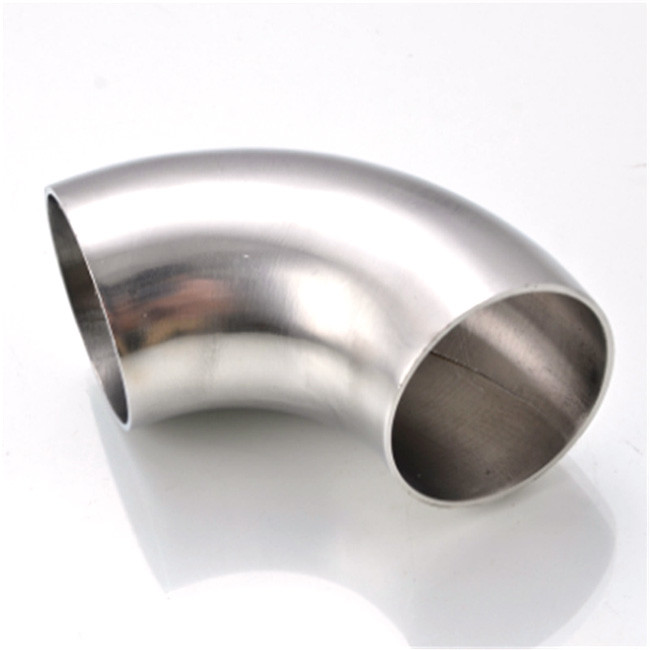

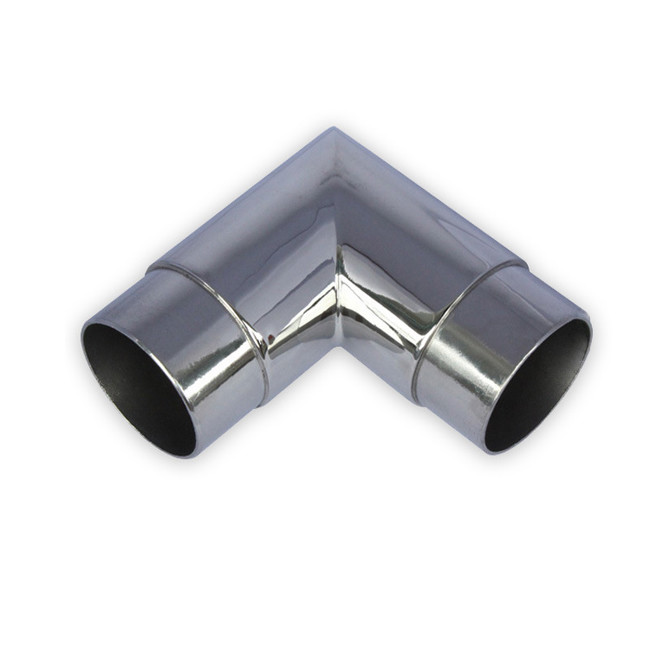

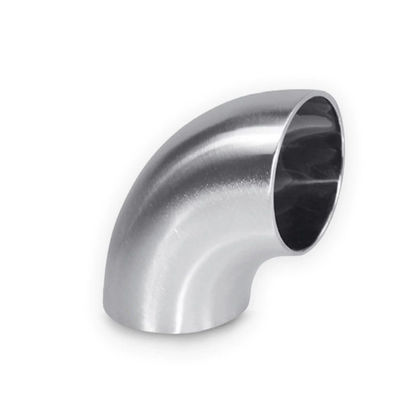

Detail Image

Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings 0Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings 1Grade 304 316 Stainless Steel Accessories Elbow Pipe Fittings 2



Packing And Loading

Pearl Vibration Rose Red Colored Stainless Steel Sheet PVD Plating Titanium 3


FAQs


Get answers to all your questions fast here from our Frequently Asked Questions.
Q:How can I get some samples?
A:Catalogue and most sample pieces are preparing for you already in stock.
Customized samples will take about 5-7days. Please contact us for further support.
Q:What is the MOQ?
A:If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q:Can you OEM or ODM?
A:Yes, we have a strong developing team. The products can be made according to your request.
Q:How long Can You Guarantee for this product/finish?
A:Colors guarantee for more than 10 years. Original materials quality certificate can be provided.
Q:What kinds of payment methods do you accept?
A:We accept the payment by T/T or L/C, besides, you can transfer to our bank account, Western Union or PayPal.
Q:What is the average lead time?
A:For samples, the lead time is about 5-10 days.
For mass production, the lead time is 10-25 days. In all cases, we will try best to accommodate your needs.
Q:Can you supply the relevant documentation?
A:Yes, we can provide most documentation such as Inspection Certificate/Mill Test Certificate, Insurance, Certificate of Origin, SASO, Form E, and other export documents what required.
