Product Details:
|
| Material: | 201 304 316L Stainless Steel | Technique: | Welding , Sanding，Polishing |
|---|---|---|---|
| Thk. Of Wall: | 1.0 To 2 Mm | Diameter: | 14,19,25,28,32,34,42,45,48,50,57,63,70,76,89,102,108,114,133,159,168 Mm Mm Or Custom |
| MOQ: | 20 Days | Packing: | Polywood Case |
| High Light: | 316 Stainless Steel Elbow Pipe Fitting,Polishing Stainless Steel Elbow Pipe Fitting,201 SS Elbow Pipe Fitting |
||
Grade 201 304 316 Stainless Steel Elbow Pipe Fitting Polishing Finish
| ITEM NO. | DN (mm) | OD mm) | A (mm) | C (mm) |
| FS-MX8001 | 10 | 12.7 | 110 | 21 |
| FS-MX8002 | 15 | 16 | 130 | 26 |
| FS-MX8003 | 20 | 20 | 145 | 30 |
| FS-MX8004 | 25 | 25.4 | 152 | 34 |
| FS-MX8005 | 35 | 32 | 128 | 50 |
| FS-MX8006 | 40 | 40 | 144 | 58 |
| FS-MX8007 | 50 | 50.8 | 158 | 64 |
| FS-MX8008 | 65 | 76.1 | 180 | 82 |
| FS-MX8009 | 80 | 88.9 | 210 | 90 |
| FS-MX8010 | 100 | 101.6 | 245 | 95 |
Introduction of Stainless Steel Pipe Elbow Pipe Fitting
In the pipeline system, stainless steel elbow is to change the direction of the line pipe fittings. Points according to the Angle 45 ° and 90 °, 180 ° that three most commonly used, according to the requirements of the project also includes 60 °, and other abnormal Angle bend.
Elbow materials, stainless steel, alloy steel, cast iron can be calcined cast iron, carbon steel, nonferrous metal and plastic, etc. With the pipe connection ways: direct welding (way) of the most commonly used flange connection, hot melt connection, fused connection, threaded connection and socket type connector, etc. According to the production process can be divided into: welding bend, stamping elbow, pushing system bend, casting bend, etc. Other names: 90 degrees bend, right-angle bend, such as love and curved.
Stainless steel elbow from carbon steel elbow is the main material is different, its chemical composition can keep the elbow surface for a long time will not rust, does not corrode. According to the standard production can be turned into: stainless steel elbow
Application
Stainless steel pipe fittings are used most often in pressure vessels and chemical industries. The general oil refinery equipment factory has a large demand. Other aspects, such as chemical, food, beverage, pharmaceutical and other industries can be applied. It is widely used in industrial transportation pipelines and mechanical structural parts such as petroleum, chemical industry, medical treatment, food, light industry, and mechanical instrumentation.

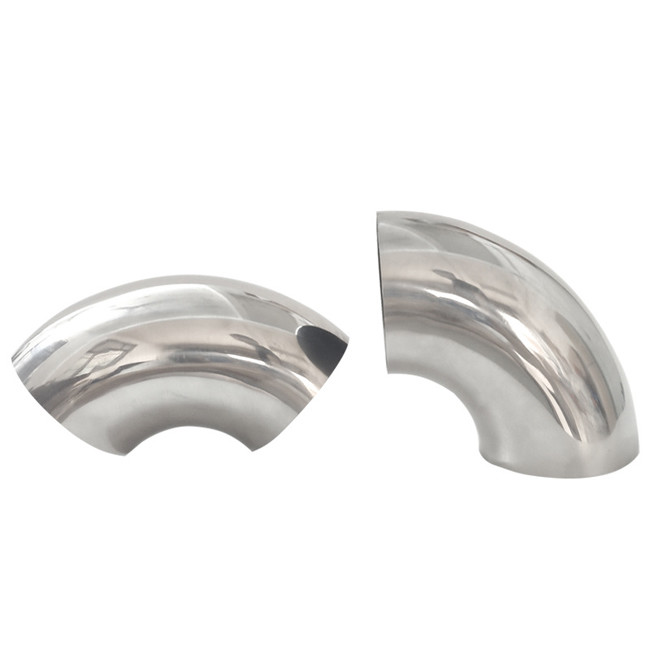

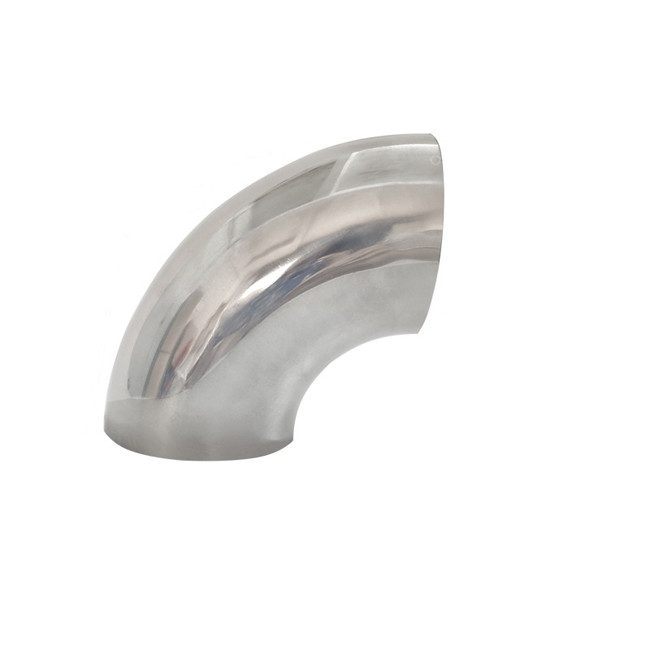

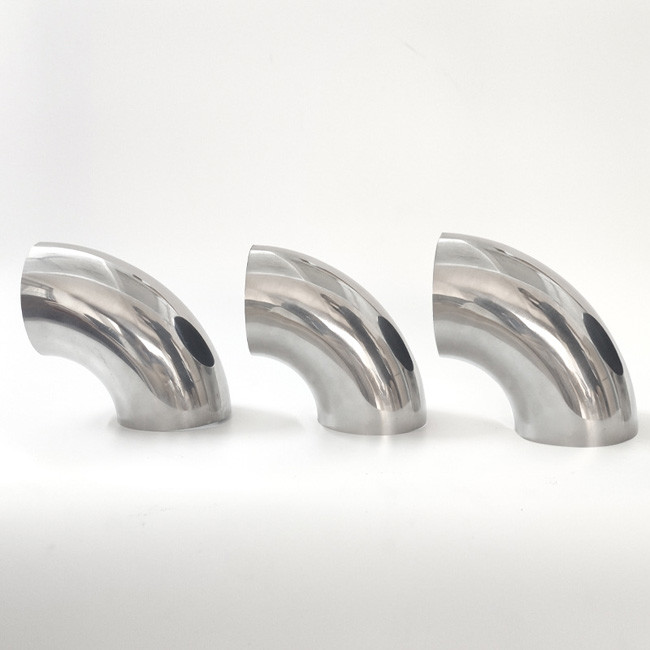

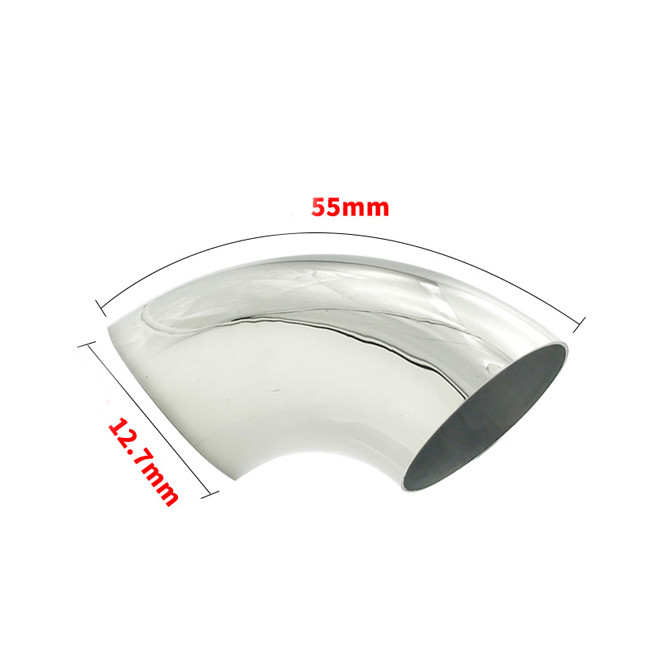

Detail Image
Packing And Loading
FAQs
Get answers to all your questions fast here from our Frequently Asked Questions.
Q:How can I get some samples?
A:Catalogue and most sample pieces are preparing for you already in stock.
Customized samples will take about 5-7days. Please contact us for further support.
Q:What is the MOQ?
A:If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q:Can you OEM or ODM?
A:Yes, we have a strong developing team. The products can be made according to your request.
Q:How long Can You Guarantee for this product/finish?
A:Colors guarantee for more than 10 years. Original materials quality certificate can be provided.
Q:What kinds of payment methods do you accept?
A:We accept the payment by T/T or L/C, besides, you can transfer to our bank account, Western Union or PayPal.
Q:What is the average lead time?
A:For samples, the lead time is about 5-10 days.
For mass production, the lead time is 10-25 days. In all cases, we will try best to accommodate your needs.
